超微“Canonical云”解决方案

Canonical OpenStack提供了设计,部署,管理,扩展和升级OpenStack云的最简单方法。

Supermicro和Canonical已经合作,在OpenStack部署最受欢迎的平台Ubuntu上提供OpenStack。 Canonical致力于OpenStack,通过OpenStack Foundation发布的节奏和企业生产高质量的OpenStack版本。



 Supermicro规范OpenStack认证平台

通过与Supermicro和Canonical建立您的超过70%的生产OpenStack云。


特点
  • 验证参考架构
  • 经认证组件
  • 扩展-一到多个机架
  • 最环保的云端服务器-每台服务器节省数百美元
  • 最低成本-最佳性能/瓦特/ $ / ft2
  • 通过利用专家的支持和服务,成为专业人士

对于OpenStack的企业支持由Canonical于Supermicro合作提供,客户可以访问全球专业知识库。合作伙伴提供:

  • 发现和设计服务-我们将依托您的云设计为所需的大小和规格,在您的网站,数据中心或于我们的合作伙伴共同托管。
  • Bootstack服务-我们的专家将全面负责新云的部署,管理,监控和全天候的可用性。
  • 转移控制-当您决定自行控制云端时,我们会对您的团队进行培训,确保顺利进行转移。
  Small Cluster using 10Gb SFP+
SRS SRS-BOTSTK-CACB-02
Cores 168 Cores
Memory 3072 GB
Raw Storage 144 TB
Power Foot Print 5562.1 VA/5450.6 WA
Height 18U
Components Used
ToR Switch 2 SSE-X3348S
PXE & IPMI Switch 1 SSE-G48-TG4
MAAS & Tooling Node 3 SYS-5018R-ISCAFS0-0
Cloud Node 9 SYS-6028U-ISCACS0-0
Services
Supermicro Rack Integration Service*
Supermicro Onsite Support

*Racking & Cabling (with 3rd party switches); Racking & Cabling Engineering Drawing; Supermicro will not be responsible for 3rd party switch configuration



 Additional Services that can be purchased
Additional Services
Supermicro Onsite Integration Service**
Ubuntu Advantage Server - Essential / Standard / Advanced Server (Min. Purchase 5)
Ubuntu Advantage OpenStack Cloud Region - Small
Ubuntu Advantage Professional Service - Per Week
Ubuntu Bootstack Program Daily
Ubuntu BootStack Professional Services - Per Week
Ubuntu Advantage Travel & Expenses - Per Week
Ubuntu BootStack CEPH / Swift Storage Add-on (Per GB per Month actual stored data)

**Require SOW Onsite Survey; Onsite logistics; Racking & Cabling (with 3rd party switches); Racking & Cabling Engineering Drawing

***Please consult with Supermicro-OpenStack Solution Team for all Canonical OpenStack related solutions. Any parts purchased individually without full testing and certification may not be fit for Canonical OpenStack Solutions. Please be advised to purchase the right services and warranty above for Canonical OpenStack related products to avoid the compatibility issues. Please also note not every service above is mandatory. Supermicro solution team is willing to help you build the right solutions anytime.



 Network Component Details








Ethernet Switch SSE-X3348T




SSE-X3348T (Cluster Role: ToR Switch)

• 48x 10GBase-T RJ45 ports
• 4x 40G QSFP ports
• 2x 1G RJ45 ports
• Switching Capacity: 1284Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• 1U form factor for flexible installation
• Redundant hot-pluggable power supplies
• CLI and Web GUI Management Interfaces









Ethernet Switch SSE-X3348S




SSE-X3348S (Cluster Role: ToR Switch)

• 48x 10G SFP+ ports
• 4x 40G QSFP ports
• 2x 1G RJ45 ports
• Switching Capacity: 1284Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces

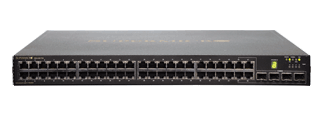

Ethernet Switch SSE-G48-TG4




SSE-G48-TG4 (Cluster Role: Management Switch)

• 48x 1G RJ45 ports
  - 48 RJ45 Copper ports and
  -  4 RJ45/SFP Combo ports
• Switching Capacity: 184Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces



Supermicro规范OpenStack云支持超出测试和验证的参考架构的各种配置。Canonical保证,当部署在任何认证的Supermicro平台上,Canonical OpenStack将“正常运行”。 客户可以根据OpenStack的专业技术水平选择。BootStack是一款全面管理的OpenStack操作系统,适合那些刚刚开始使用OpenStack的客户。对于经验丰富的OpenStack客户,我们提供有关如何使用Canonical工具来建构,管理,扩展和升级您所支持的独立于Canonical&Supermicro的OpenStack云的培训服务。



 Certified Nodes for Canonical OpenStack





SYS-5018R-WR




SYS-5018R-ISCAFT0-0 (Cluster Role: MAAS)

• System: SYS-5018R-WR
• 14 (1 * 14) Cores
• 64 (4 * 16) GB RAM
• Micron 7100 MAX 800GB NVME PCIe 3.0 M.2
• 4 (2 * 2) TB SATA HDD
• 2 * 10G RJ45 ports; 1 IPMI; 2 * 1G






SYS-5018R-WR




SYS-5018R-ISCAFS0-0 (Cluster Role: MAAS)

• System: SYS-5018R-WR
• 14 (1 * 14) Cores
• 64 (4 * 16) GB RAM
• Micron 7100 MAX 800GB NVME PCIe 3.0 M.2
• 4 (2 * 2) TB SATA HDD
• 2 * 10G SFP+ ports; 1 IPMI; 2 * 1G





SYS-6028U-TR4+




SYS-6028U-ISCACT0-0 (Cluster Role: Cloud Node)

• System: SYS-6028U-TR4+
• 28 (2 * 14) Cores
• 512 (32 * 16) GB RAM
• Micron 7100 MAX 800GB NVME PCIe 3.0 M.2
• 6 * 4TB SATA HDD
• 4 * 10G RJ45 ports; 1 IPMI; 4 * 1G





SYS-6028U-TR4+




SYS-6028U-ISCACS0-0 (Cluster Role: Cloud Node)

• System: SYS-6028U-TR4+
• 28 (2 * 14) Cores
• 512 (32 * 16) GB RAM
• Micron 7100 MAX 800GB NVME PCIe 3.0 M.2
• 6 * 4TB SATA HDD
• 4 * 10G SFP+ ports; 1 IPMI; 4 * 1G






SYS-6017R-WRF




SYS-6018R-WTR (Cluster Role: MAAS, Cloud Node)

• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
• 4 Hot-swap 3.5" SAS/SATA drive bays for Customizable storage
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• Riser card support: Left side - 2 PCI-E 3.0 x16 (FHHL) slots
• 2 SuperDOM, 1 VGA, 1 Serial, 6 USB 3.0 (4 rear)
• 2 GbE via Intel i350, dedicated LAN port for IPMI 2.0
• 5 Counter-rotating PWM fans
• 700W Redundant Platinum Level Power Supplies







SYS-6017R-WRF




SSG-5028R-E1CR12L (Cluster Role: Cloud Node, Storage Node)

• Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
• 12 Hot-swap 3.5" SAS3 drive bays (SAS3 via LSI 3008 controller; IR mode)
   2 Rear optional 2.5" Hot-swap HDD Bays
• 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 1 PCI-E 3.0 x4 (in x8), 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 2.0 x2 (in x4),
   1 PCI-E 2.0 x4 (in x8)
• 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
• 4 GbE via Intel i350-AM4, dedicated LAN port for IPMI 2.0
• 3 heavy duty fans w/ optimal fan speed control
• 920W Redundant Platinum Level Power Supplies
• 2 JBOD expansion ports






SYS-6028U-TR4+




SYS-6028U-TR4+ (Cluster Role: Cloud Node, Storage Node)

• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
• 12 Hot-swap 3.5" drive bays; 10 SATA3 ports by default; optional 12 SAS3
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 1 PCI-E 3.0 x16 & 7 PCI-E 3.0 x8 slots (5 FH, 1 LP, 1 internal LP)
• 1 VGA, 1 COM, 5 USB 3.0
• 4 GbE, dedicated LAN port for IPMI 2.0
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies
