Supermicro Hadoop 解决方案

Supermicro Hadoop 解决方案


现今运用大数据分析已不再是问题。但要怎么做呢?当企业开始部署Hadoop时,需要有高性能、高可靠度及可扩展性的基础设施,以及能寻得大量资源以提供最佳架构的最佳解决方案服务商。Supermicro Hadoop解决方案提供包括服务器、存储、网络、软件和服务的完整配置,却把能协助客户设计及建设一个真正可扩展的巨量资料处理环境。



Supermicro Hadoop Cluster解决方案
(最高支持1.15 PB存储容量及 9 TB内存容量)


优点


采用最佳服务器及Cluster配置设计

以业界领先的服务器与存储平台,提供最佳性价比

结合最新技术(如:Xeon E5-2600 v3, SAS3, NVMe)提供先进架构


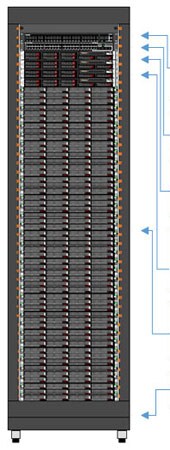

Cluster Building Blocks

存储交互网络
Supermicro 10GbE Switch (1-2)
• 48 port 10G SFP+/10GBase-T

网络管理
Supermicro 1GbE Switch (1)

节点管理
Supermicro Intelligent Management
Supermicro SuperServer 1U UP Xeon

Hadoop Name Nodes
Supermicro SuperServer (3)
1U DP Xeon E5-2600 v3
Hardware RAID, Redundant Power

Hadoop Data Nodes
Supermicro TwinPro or FatTwin (34)
2U-4U Xeon E5-2600 v3, dual 10GbE

Supermicro SuperRack
42U rack with Metered PDUs


Supermicro Hadoop Cluster解决方案包含所有Cluster定制或、老化测试、BIOS及硬件更新、联网装置以及安装以Hadoop开发的软件,如Cloudera和Hortonworks。



Supermicro Hadoop Cluster解决方案

Supermicro以多达其中定制化Cluster集群配件,为您提供最灵活、最有益的巨量资料解决方案。

• PoC Cluster
• High Capacity Cluster
• IO Optimized Cluster
• High Density Compute Cluster
• Large Memory & Storage Cluster
• Balanced Cluster
• Large Memory Cluster




   Hadoop Cluster技术规格表

  PoC Cluster High Capacity Cluster IO Optimized Cluster High Density Compute Cluster Large Memory and Storage Cluster Balanced Cluster Large Memory/Dual 10G Cluster
Model / SKU SRS-14TP08-HADP-01 SRS-42SG18-HADP-01 SRS-42SG18-HADP-02 SRS-42FT36-HADP-01 SRS-42FT36-HADP-02 SRS-42TP36-HADP-01 SRS-42TP34-HADP-02
Data Node 8 18 18 36 36 36 34
Form Factor 2U TwinPro 2U SSG 4U FatTwin 2U TwinPro

E5-2630 v4

E5-2630 v4

E5-2650 v4

E5-2680 v4

E5-2650 v4

E5-2630 v4

E5-2650 v4
128GB 128GB 128GB 128GB 256GB 128GB 256GB
6 Bay 3.5" 16 Bay 3.5" 24 Bay 2.5" 8 Bay 3.5" 8 Bay 3.5" 6 Bay 3.5" 12 Bay 2.5"
Total Data Drive 48 288 432 288 288 216 408
Total Cores 160 360 432 1008 864 720 816
Total Memory 1TB 2.3TB 2.3TB 4.6TB 9.2TB 4.6TB 8.7TB
Total Storage 192TB (4TB) 1.72PB (6TB) 864TB (2TB) 1.15PB (4TB) 1.72PB (6TB) 864TB (4TB) 816TB (2TB)
Name Node 2x 1U WIO 3x 1U WIO 3x 1U WIO 3x 1U WIO 3x 1U WIO 3x 1U WIO 3x 1U WIO
Management Node 1x 1U WIO 1x 1U WIO 1x 1U WIO 1x 1U WIO 1x 1U WIO 1x 1U WIO 1x 1U WIO
Switches 1x 24PT GbE 1x 48PT GbE 1x 48PT GbE 1x 48PT GbE

1x 48PT 10GBase-T

1x 48PT10G SFP+

2x 48PT 10G SFP+

Cabinet (WxHxD) 14U
21.6x30.6x37.4
42U
23.5x 82.4x 48
PDU 1x2U 30A 2x 50A 208 3-Phase Metered PDU



   服务器规格



SYS-F628R3-RTB+

• FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 6 + 2 Hot-swap 3.5" SATA3 HDD Bays
• 16x DIMM slots; up to 1TB DDR4 2133MHz reg. ECC memory
• 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
• I/O ports: 2x GbE, 1x Video, 1x COM, 2x USB 3.0
80Plus Platinum• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 2x 8cm 11K RPM middle fans
• 1280W Redundant Platinum Level Power Supplies


TwinPro
Titanium, 96% Efficiency
Power Supplies

SYS-6028TP-DNCR

• 2x DP nodes in 2U; depth 30.5", Each Node (x2 nodes):
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 16x DIMM slots; up to 1TB DDR4 2133MHz ECC memory
• 1x PCI-E 3.0 x16 and 1x PCI-E x8 slots
• 6x 3.5" Hot-swap Drive Bays (up to 4x NVMe + 2x SAS3 or 6x SAS3)
• I/O ports: 2x GbE, 1x Video, 2x USB 3.0
Titanium Level• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x 80mm heavy duty fans w/ optimal fan speed control
• 1600W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies


TwinPro
SYS-2028TP-DC1R

• 2x DP nodes in 2U; depth 28.5", Each Node (x2 nodes):
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 16x DIMM slots; up to 1TB DDR4 2133MHz ECC memory
• 1x PCI-E 3.0 x16 slot and 1x PCI-E x8 slot
• 1x PCI-E 3.0 x16, 1x PCI-E x8, and GPU support via x16 slot
• 12x 2.5" Hot-swap SAS (8) / SATA (4) Drive Bays
• 1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector
• I/O ports: 2x GbE, 1x Video, 2x USB 3.0
Platinum Level• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x 80mm heavy duty fans w/ optimal fan speed control
• 1280W Redundant Platinum Level Digital Power Supplies



Titanium, 96% Efficiency
Power Supplies

SSG-6028R-E1CR16T

• 2U Storage Server - Expansion / Performance / Flexibility
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 16x 3.5" Hot-swap SAS3 Drive Bays (SAS3 via Broadcom 3108)
• 16x DIMM slots; up to 1TB DDR4 2133MHz ECC memory
• 1x PCI-E 3.0 x16 and 6x PCI-E 3.0 x8 slots
• I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
Titanium Level• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x 80mm hot-swap redundant PWM cooling fans
• 1000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies



Titanium, 96% Efficiency
Power Supplies

SYS-6028U-E1CNR4T+ / SYS-6028U-E1CNRT+

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 12x 3.5" Hot-swap SAS3 via Expander and AOC; 4x NVMe
• 24x DIMM slots; up to 1.5TB DDR4 2133MHz ECC memory
• SYS-6028U-TNRT+: 7x PCI-E 3.0 x8 slots (5 FH, 2 LP)
   SYS-6028U-TNR4T+: 6x PCI-E 3.0 x8 slots (4 FH, 2 LP)
• I/O ports: 4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+),
   1x Video, 1x COM/Serial, 5x USB 3.0
Titanium Level• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies



SSG-6028R-E1CR12L

• 2U Storage Server - Expansion / Performance / Flexibility
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 12x 3.5" Hot-swap SAS3/SATA3 drive bays,
   2x 2.5" optional Hot-swap Drive Bays (rear)
   SAS3 via Broadcom 3008 controller, IT mode
• 16x DIMM slots; up to 1TB DDR4 2133MHz ECC memory
• 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 (slot 1 & 2 occupied)
• I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
Platinum Level• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3x heavy duty fans w/ optimal fan speed control
• 920W Redundant Platinum Level Power Supplies



SSG-2028R-E1CR24L

• 2U Storage Server - Expansion / Performance / Flexibility
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 24x 2.5" Hot-swap SAS3/SATA3 drive bays; 2x 2.5" optional Hot-swap rear side drive bays
• SAS3 via Broadcom 3008 - IT mode; SW RAID
• 16x DIMM slots; up to 1TB DDR4 2133MHz ECC memory
• 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 (slot 1 & 2 occupied)
• I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
Platinum Level• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3x heavy duty fans w/ optimal fan speed control
• 920W Redundant Platinum Level Power Supplies



SYS-1028R-WC1R

• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 10x 2.5" Hot-swap SAS/SATA Drive Bays; optional 2x 2.5" NVMe drives supported
• 16x DIMM slots; up to 1TB DDR4 2133MHz ECC memory
• 2x PCI-E 3.0 x16 FHHL slots
• I/O ports: 2x GbE, 2x SuperDOM, 1x Video, 1x COM, 6x USB 3.0 (4 rear, 2 front)
Platinum Level• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 5x 4cm Counter-rotating PWM fans
• 700W Redundant Platinum Level Power Supplies



SYS-1018R-WC0R

• Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• 8x 2.5" Hot-swap SAS3/SATA3 + 2x 2.5" Hot-swap SATA3 Drive Bays; default support 8+2 SATA3 HDD
• 8x DIMM slots; up to 512GB DDR4 2133MHz ECC memory
• 2x PCI-E 3.0 x16 FH slots and 1x PCI-E 3.0 x8 (in x16) HH slot
• I/O ports: 2x GbE, 2x SuperDOM, 1x Video, 2x COM, 2x USB 3.0, 4x USB 2.0
Platinum Level• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3x PWM Cooling fans
• 750W Redundant Platinum Level Power Supplies




1Gb & 10Gb Ethernet Switches

• Layer 2/3 Ethernet Switching, link aggregation (LACP), Jumbo frames, VLAN support
• Configuration Flexibility:
  SSE-G24-TG4 - 24 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports,
    4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
  SSE-G48-TG4 - 48 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports,
    4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
  SSE-X24S / SSE-X3348S(R) - 24 ports 10Gbps Ethernet (SFP+), Reverse airflow option
• Management: Web-based management interface, Industry standard CLI with telnet
    SSH or local management port, Scripting, Logging
• Routing, Multicast:
  Quality of service and DiffServ - 8 priority queues per port; Adjusted WRR and Strict Priority Scheduling
  Security - 802.1x port based authentication, RADIUS and TACACS+ authentication, SSH / SSL encryption
• Dimensions: 17.3"W x 15.2"D x 1.7"H (440mm x 386mm x 43mm)



IPMI Server Management

• HW fault alerts - E-mail or SNMP
• Redundant access for management
• Support for open standards (SMASH 2.0, LDAP, WSMAN)
• VLAN support
• KVM and Virtual Media and SOL (no additional license needed)
• Easy maintenance (Command line flash tools for firmware update)
