Supermicro® 集成 VMware vSAN 解决方案

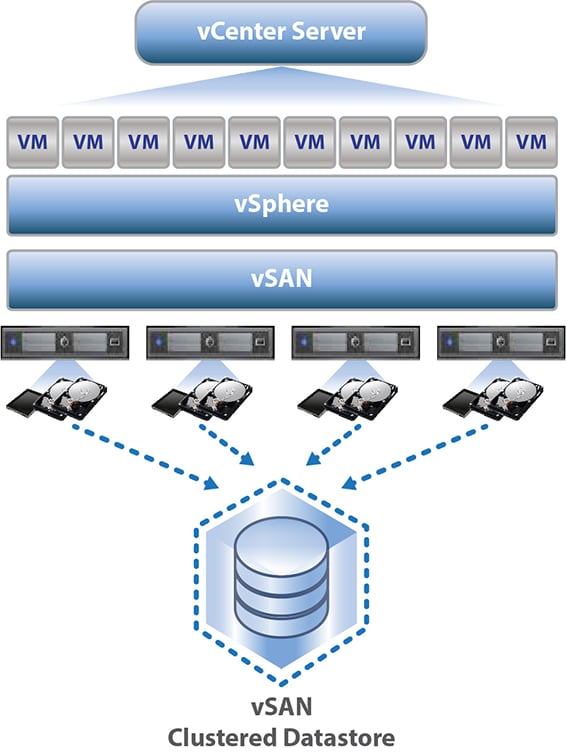

Supermicro 42U RackSupermicro vSAN ReadyNodes™ 为部署了 VMware vSAN 节点,能最快速进行虚拟化完整过程。 Supermicro 与 VMware 携手合作,提供了一种能够替代传统光纤通道 SAN 的虚拟化架构,其中複杂性与困难度为众所皆知的。 Supermicro 的 vSAN 解决方案采用最新高性能存储层最佳化虚拟环境以最简单、高弹性、高效能并降低总体拥有成本为诉求,专为各式各样桌面虚拟化、灾难复原、产线大量部署等应用而设计。 成为大中小各种企业最有效发展与管理虚拟化架构,并有最高投资报酬率的完美解决方案。

一个 vSAN ReadyNode 为一个或多个已预先安装与设定好 vSAN 软件之硬体节点。 一个 Ready Node 必须於其每个伺服器节点中配置了特定类型配置文件、CPU、记忆体、Flash、HDD 与硬盘控制器等。 於每个 Ready Node 中定义其 vSAN Ready Node 配置文件。其定义 Ready Node 配置文件需包含:

vSphere + vSAN





     • Hybrid Ready Node Profiles*
        - HY-8 Series: Up to 100 VMs per node
        - HY-6 Series: Up to 50 VMs per node
        - HY-4 Series: Up to 30 VMs per node
        - HY-2 Series: Up to 20 VMs per node

     • All-Flash Ready Node Profiles*
        - AF-8 Series: Up to 120 VMs per node
        - AF-6 Series: Up to 60 VMs per node
        - AF-4 Series: Up to 30 VMs per node

针对各种不同 效能/价格 需求,提供了各种不同的配置文件。 每个配置文件根据虚拟机配置大小平均数来决定每个节点所负载数量。 节点中资料覆写与丛集环境使其具备容错能力。 Flash 与硬盘无缝整合使其达到容量与效能的最佳化。

*For more information about vSAN Ready Node profiles and VM sizing assumptions, refer to VMware's vSAN Hardware Quick Reference Guide


 优点

  • 单一采购窗口 - Supermicro vSAN ReadyNode™ 已包含 VMware vSAN 与 Horizon View 产品授权。Supermicro 为您简化整体采购、安装等繁琐流程,为您带来简便安装新体验。
  • 简单明瞭存储 - vSAN 与 vSphere 能完美进行无缝结合存储任务,让您管理与与配置存储单元成为一件轻而易举的事。vSAN 能够自动重建故障损毁区域与平衡存储池使用状况,维持整体存储池效能与健康状态。
  • 降低整体 TCO 高达 50% - vSAN 让您轻而易举扩充您的存储装置,以确保当您卓越发展时不会有过度配置产生。
  • 高效能 - vSAN 整合伺服器端 flash,提供了 读/写 快速与安全的快取且比外部 flash 设备具有更高的速度与更低的延迟时间。 如此一来,虚拟机与相关应用程式即拥有最佳化 I/O 效能与速度,成为您拓展业务不可或缺的主角。
  • 容错能力 - vSAN 采用分散式 RAID 与快取镜像等技术,确保您宝贵的资料不会因为磁碟、主机或网路等因素而毁损。 结合 Supermicro 卓越的品质与可靠性有助於大幅提高系统正常运行时间,以确保您的服务不中断。
  • 最放心 - Supermicro vSAN ReadyNode™ 为 VMware 官方建议采用。 完整的系统与服务的配置,以确保最佳效能与稳定,成为您最成功的典範

 vSAN 就绪系统

All-Flash Supermicro vSAN ReadyNode™


AF-6 (All-Flash)
8TB Raw Capacity

SYS-2029BT-VSNF22N

• 2U Four vSAN Ready Nodes based on AF-6 Ready Node Profile
• 8 TB Raw Capacity (4 x 2TB Intel® SSD DC P4500, Intel® Optane™ SSD DC P4800X 375GB)
• 32 Cores (2x Intel Xeon Gold 6142 2.6GHz)
• 256 GB Memory (16x 16GB DDR4-2666)
• Dual 2x25G + 2x10G via SIOM
• VMware vSphere Standard & vSAN Advanced with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




AF-8 (All-Flash)
21TB Raw Capacity

SYS-2028U-VSMC11C / SYS-2028U-VSMC12C
SYS-2028U-VSMH11C* / SYS-2028U-VSMH12C*


• 2U Single vSAN Ready Node based on AF-8 Ready Node Profile
• 21 TB Raw Capacity (21x 960 GB SSDs, 3x 600GB Caching SSDs)
• 28 Cores (2x Intel Xeon E5-2690 v4)
• 512 GB Memory (16x 32GB DDR4-2400)
• 3 PCI-E 3.0 x8 Expansion Slots
• Quad 10GbE R45 (11C models) OR Dual 10GbE RJ45 + Dual 10GbE SFP+ (12C models)
• Micron SOLID Ready
• VMware vSphere Standard & vSAN Advanced with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




AF-6 (All-Flash)
12TB Raw Capacity

SYS-2028U-VSMC11B / SYS-2028U-VSMC12B
SYS-2028U-VSMH11B* / SYS-2028U-VSMH12B*


• 2U Single vSAN Ready Node based on AF-6 Ready Node Profile
• 12 TB Raw Capacity (12x 960 GB SSDs, 2x 600GB Caching SSDs)
• 24 Cores (2x Intel Xeon E5-2650 v4)
• 256 GB Memory (16x 16GB DDR4-2400)
• 4 PCI-E 3.0 x8 Expansion Slots
• Quad 10GbE R45 (11B models) OR Dual 10GbE RJ45 + Dual 10GbE SFP+ (12B models)
• Micron SOLID Ready
• VMware vSphere Standard & vSAN Advanced with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




AF-4 (All-Flash)
8TB Raw Capacity

SYS-2028U-VSMC11A / SYS-2028U-VSMC12A
SYS-2028U-VSMH11A* / SYS-2028U-VSMH12A*


• 2U Single vSAN Ready Node based on AF-4 Ready Node Profile
• 8 TB Raw Capacity (8x 960 GB SSDs, 2x 600GB Caching SSDs)
• 24 Cores (2x Intel Xeon E5-2650 v4)
• 256 GB Memory (16x 16GB DDR4-2400)
• 4 PCI-E 3.0 x8 Expansion Slots
• Quad 10GbE R45 (11A models) OR Dual 10GbE RJ45 + Dual 10GbE SFP+ (12A models)
• Micron SOLID Ready
• VMware vSphere Standard & vSAN Advanced with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)



    * Models that do not include VMware vSphere & vSAN





AF-8 (All-Flash)
14.4TB Raw Capacity

SYS-2028U-VSNF11L / SYS-2028U-VSNF12L

• 2U Single vSAN Ready Node based on AF-8 Ready Node Profile
• 14.4 TB Raw Capacity (12x 1.2 TB SSDs, 2x 800GB Caching SSDs)
• 24 Cores (2x Intel Xeon E5-2680 v4)
• 384 GB Memory (24x 16GB DDR4)
• 4 PCI-E 3.0 x8 Expansion Slots
• Quad 10GbE R45 (VSNF11L) OR Dual 10GbE RJ45 + Dual 10GbE SFP+ (VSNF12L)
• VMware vSphere Standard & vSAN Advanced with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




AF-6 (All-Flash)
8TB Raw Capacity per node

SYS-2028TP-VSNF11X / SYS-2028TP-VSNF12X

• 2U Four vSAN Ready Nodes based on AF-6 Ready Node Profile
• 8 TB Raw Capacity (2x 4 TB SSDs, 1x 400GB Caching SSD)
• 24 Cores (2x Intel Xeon E5-2670 v4)
• 256 GB Memory (16x 16GB DDR4)
• Dual 1GbE + Dual 10GbE R45 (VSNF11X) OR Dual 1GbE + Dual 10GbE SFP+ (VSNF12X)
• VMware vSphere Standard & vSAN Advanced with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




AF-6 (All-Flash)
8TB Raw Capacity per node

SYS-2028TP-VSNF11M / SYS-2028TP-VSNF12M

• 2U Four vSAN Ready Nodes based on AF-6 Ready Node Profile
• 8 TB Raw Capacity (5x 1.6 TB SSDs, 1x 800GB Caching SSD)
• 24 Cores (2x Intel Xeon E5-2670 v4)
• 256 GB Memory (16x 16GB DDR4)
• Dual 1GbE + Dual 10GbE R45 (VSNF11M) OR Dual 1GbE + Dual 10GbE SFP+ (VSNF12M)
• VMware vSphere Standard & vSAN Advanced with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




AF-4 (All-Flash)
4TB Raw Capacity per node

SYS-2028TP-VSNF11E / SYS-2028TP-VSNF12E

• 2U Four vSAN Ready Nodes based on AF-4 Ready Node Profile
• 4 TB Raw Capacity (5x 800 GB SSDs, 1x 200GB Caching SSD)
• 20 Cores (2x Intel Xeon E5-2650 v4)
• 128 GB Memory (8x 16GB DDR4)
• Dual 1GbE + Dual 10GbE R45 (VSNF11E) OR Dual 1GbE + Dual 10GbE SFP+ (VSNF12E)
• VMware vSphere Standard & vSAN Advanced with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)






Hybrid Supermicro vSAN ReadyNode™


HY-8 (Hybrid)
24TB Raw Capacity

SYS-2028U-VSN011X / SYS-2028U-VSN012X

• 2U Single vSAN Ready Node based on HY-8 Ready Node Profile
• 24 TB Raw Capacity (20x 1.2 TB HDDs, 4x 400GB Caching SSDs)
• 24 Cores (2x Intel Xeon E5-2680 v4)
• 384 GB Memory (24x 16 GB DDR4)
• 5 PCI-E 3.0 x8 Expansion Slots
• Quad 10GbE R45 (VSN011X) OR Dual 10GbE RJ45 + Dual 10GbE SFP+ (VSN012X)
• VMware vSphere Standard & vSAN Standard with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




HY-8 (Hybrid)
14.4TB Raw Capacity

SYS-2028U-VSN011L / SYS-2028U-VSN012L

• 2U Single vSAN Ready Node based on HY-8 Ready Node Profile
• 14.4 TB Raw Capacity (12x 1.2 TB HDDs, 2x 800GB Caching SSDs)
• 24 Cores (2x Intel Xeon E5-2680 v4)
• 384 GB Memory (24x 16 GB DDR4)
• 4 PCI-E 3.0 x8 Expansion Slots
• Quad 10GbE R45 (VSN011L) OR Dual 10GbE RJ45 + Dual 10GbE SFP+ (VSN012L)
• VMware vSphere Standard & vSAN Standard with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




HY-8 (Hybrid)
9.6TB Raw Capacity

SYS-1028U-VSN011N / SYS-1028U-VSN012N

• 1U Single vSAN Ready Node based on HY-8 Ready Node Profile
• 9.6 TB Raw Capacity per node (8x 1.2 TB HDDs, 2x 400GB Caching NVMe SSDs)
• 24 Cores (2x Intel Xeon E5-2680 v4)
• 256 GB Memory (8x 16 GB DDR4)
• 2 PCI-E 3.0 x16 Expansion Slots
• Quad 10GbE (VSN011N) OR Dual 10GbE + Dual 10GbE SFP+ (VSN012N)
• VMware vSphere Standard & vSAN Standard with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




HY-6 (Hybrid)
6TB Raw Capacity per node

SYS-2028TP-VSN011M / SYS-2028TP-VSN012M

• 2U Four vSAN Ready Nodes based on HY-6 Ready Node Profile
• 6 TB Raw Capacity (5x 1.2 TB HDDs, 1x 800GB Caching SSD)
• 24 Cores (2x Intel Xeon E5-2650 v4)
• 256 GB Memory (16x 16 GB DDR4)
• Dual 1GbE + Dual 10GbE R45 (VSN011M) OR Dual 1GbE + Dual 10GbE SFP+ (VSN012M)
• VMware vSphere Standard & vSAN Standard with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




HY-4 (Hybrid)
4TB Raw Capacity

SYS-1028U-VSN011E / SYS-1028U-VSN012E

• 1U Single vSAN Ready Node based on HY-4 Ready Node Profile
• 4 TB Raw Capacity per node (4x 1 TB HDDs, 1x 200GB Caching SSD)
• 20 Cores (2x Intel Xeon E5-2660 v4)
• 128 GB Memory (8x 16 GB DDR4)
• 2 PCI-E 3.0 x16 Expansion Slots
• Quad 1GbE + Dual 10GbE RJ45 (VSN011E) OR Quad 1GbE + Dual 10GbE SFP+ (VSN012E)
• VMware vSphere Standard & vSAN Standard with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)




HY-2 (Hybrid)
5TB Raw Capacity

SYS-1018R-VSN001S

• 1U Single vSAN Ready Node based on HY-2 Ready Node Profile
• 5 TB Raw Capacity (5x 1 TB HDDs, 1x 200GB Caching SSD)
• 8 Cores (1x Intel Xeon E5-2620 v4)
• 64 GB Memory (4x 16 GB DDR4)
• 1 PCI-E 3.0 x8 LP Expansion Slot
• 6 1GbE ports
• VMware vSphere Standard & vSAN Standard with Production SnS for 3 Years
• Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)






 其他 vSAN 组件




1Gb & 10Gb Ethernet Switches

• Layer 2/3 Ethernet Switching, link aggregation (LACP), Jumbo frames, VLAN support
• Configuration Flexibility:
  SSE-G24-TG4 - 24 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports,
    4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
  SSE-G48-TG4 - 48 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports,
  SSE-X3348T(R) - 48 ports of RJ45 10Gbps Ethernet
  SSE-X24S / SSE-X3348S(R) - 48 ports 10Gbps Ethernet (SFP+), Reverse airflow option
• Management: Web-based management interface, Industry standard CLI with telnet
    SSH or local management port, Scripting, Logging
• Routing, Multicast: Quality of service and DiffServ - 8 priority queues per port; Adjusted
    WRR and Strict Priority Scheduling; Security - 802.1x port based authentication, RADIUS
    and TACACS+ authentication, SSH / SSL encryption
• Dimensions: 17.3"W x 15.2"D x 1.7"H (440mm x 386mm x 43mm)





IPMI Server Management

• HW fault alerts - E-mail or SNMP
• Redundant access for management
• Support for open standards (SMASH 2.0, LDAP, WSMAN)
• VLAN support
• KVM and Virtual Media and SOL (no additional license needed)
• Easy maintenance (Command line flash tools for firmware update)




1U

VMware Cluster Management

VMware vCenter Server provides a centralized platform for managing the Supermicro VMware vSAN solution. vCenter Server is required. Supermicro provides the full range of VMware vCenter products, as well as the server and OS to complete the whole environment. Contact your Supermicro Sales Representative for details of our VMware software offerings.
